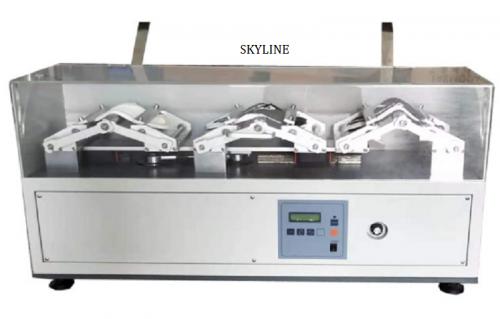

EN Sole Flexing Tester

item No: EN Sole Flexing Tester

EN Sole Flexing Testing Equipment of Standards:

GB/T20991, GB21148, SATRA TM161, EN20344, ISO-17707, EN344

Parameters of EN Sole Flexing Testing Machine:

Number of shoe soles per measurement:	Three outsoles can be measured at the same time
Curvature angle:	(90±2)º
Speed:	(5 to 150)r/min adjustable
Diameter of zigzag axis:	30mm
Volume:	(100x30x53)cm
Weight:	about 118kg
Power:	380w
Power supply:	AC 220V, 5A

Please review video of the EN Sole Flexing Tester as below link:

https://youtu.be/3BkSu-g1fHs

Inquiry Now

Detailed Description

Inquiry Now

Application of EN Sole Flexing Tester:

Install the sole test specimen on the EN flex tester so that the cutout falls directly above the center of the shaft of the EN flex tester, drive the test specimen to stretch (90±2)º flex on the shaft through the EN flex tester, after a certain number of tests, measure the length of the cutout of the test specimen, and evaluate the flex resistance of the test sole by the size of the cutout growth rate.

Random accessories of EN Sole Flexing Tester:

1. 1 cutter, 1 power cord, 1 hexagonal wrench.

2. 1 copy of manual, 1 copy of internal calibration report, 1 copy of warranty card.
