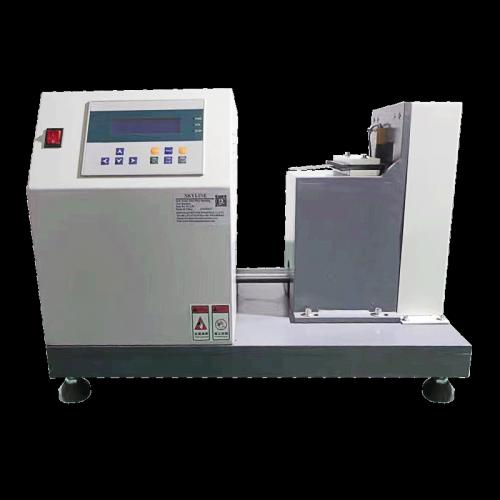

SL-L56 Steel Plate Bending Test Machine

Introduction of Steel Plate Bending Test Machine

Put the protective midsole on the protective midsole zigzag testing machine to do a certain number of continuous zigzags, and evaluate the flex resistance performance of the protective midsole by observing whether there are cracks or breaks on the surface of the protective midsole.

Reference Standards of Steel Plate Bending Testing Machine

Comply with ISO 20344, EN 12568, GB/T20991, GB/T21148, CSA Z195 and other standards

Technical Specifications of Steel Plate Bending Test Machine Manufacturer

1. Number of test pieces: 1 sample

2. Bending frequency: (960±60) times/min

3. Zigzag stroke: (33±0.5)mm

4. The distance between the splint and the fixture: (70±1) mm

5. Volume: (65×40×48) cm

6. Weight: about 88kg

7. Power supply: AC220V, 370W

Steel Plate Bending Test Machine random configurations

1. Equipped with 2 rubber blocks and 1 hexagon wrench.

2. One belt, 1 power cord.

3. 1 manual, 1 internal calibration certificate, 1 warranty card

What is CSA Z195?

CAN/CSA-Z195 is Canada's national standard for safety footwear. The types of protection certified include toe protection, sole puncture protection, electric shock resistance, and anti-static protection.
CSA International can test and certify safety footwear products according to the CAN/CSA Z195 standard, and certified products can use the authoritative certification mark.
