The Footwear Tester Backpart Stiffness Tester

10 \ Jan

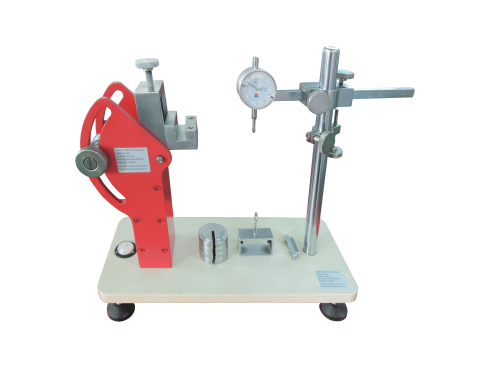

Footwear Testing Equipment Backpart stiffness testers are used to measure the stiffness of the backpart of a shoe, which includes the heel and the counter (the part of the shoe that surrounds the heel). This measurement is important because it helps shoe manufacturers ensure that their shoes provide adequate support and stability for the wearer. To use a backpart stiffness tester, the shoe is placed on the tester and a force is applied to the heel and counter. The tester then measures the amount of force required to deform the backpart of the shoe a certain amount, and this measurement is used to calculate the stiffness of the backpart.



There are a few different ways that backpart stiffness testers can work, but one common method is as follows:

1. The shoe is placed on the tester with the heel and counter positioned under the loading mechanism.

2. The loading mechanism applies a force to the heel and counter of the shoe. This force is typically applied using a hydraulic or pneumatic cylinder.

3. As the force is applied, the backpart of the shoe deforms. The amount of deformation is measured using a displacement sensor, such as a linear variable differential transformer (LVDT) or a strain gauge.

4. The tester calculates the stiffness of the backpart of the shoe based on the amount of force applied and the amount of deformation that occurred. This calculation is typically done using a built-in computer or controller.


The stiffness measurement obtained using a Footwear backpart stiffness tester is typically reported in units of force per unit of displacement, such as pounds per inch or newtons per millimeter. This measurement can be used to compare the stiffness of different shoes or to ensure that a shoe meets certain stiffness requirements.
